777R Fuel Heater/Water Separator Series

ALL PARTS ON THIS PAGE ARE OBSOLETE

777R Fuel Heater/Water Separator Series

Fuel & Coolant Heat Port Sizes: 1/2' Female NPT

Maximum Diesel Flow Rating: 180 gph (682 lph)

Order Assemblies and Replacement Parts:

Phone: (562) 865–9200 / Fax: (562) 403-1700 / E-mail: Sales@ftginc.com / or Visit www.RacorParts.com

SAMPLE PHOTO.jpg

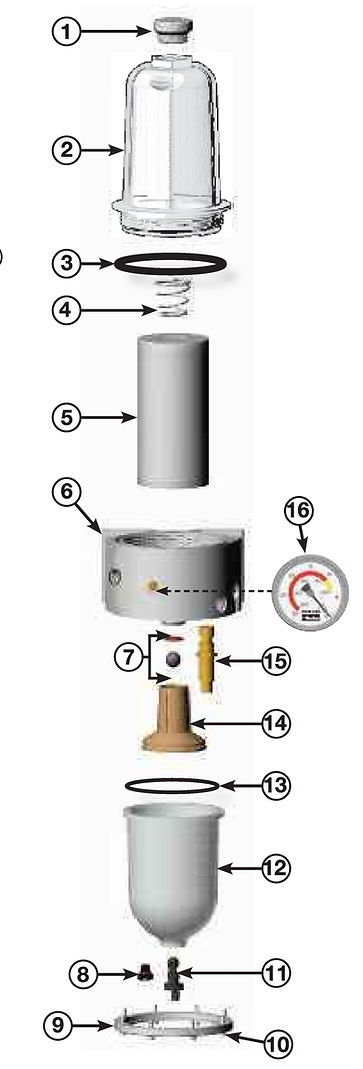

777R Parts Explode Racor FTG.jpg

Assemblies - Part Numbers

777R Assembly with "2" micron element

777R02

777R Assembly with 10 micron element

777R10

777R Assembly with 30 micron element

777R30

Replacement Parts & Accessories - Part Numbers

Priming Plug Kit (includes o-ring)

6707

1

Clear Dome Kit (includes #'s 2-4 and plug o-ring)

RK23006

2

Dome Gasket (kit Includes 3 gaskets)

6706P

3

Element Spring

RK6733

4

"2" Micron Replacement Element

6732S

5

10 Micron Replacement Element

6732T

"

30 Micron Replacement Element

6732P

"

Machined Billet Body (Not Available)

N/A

6

Check Valve Kit (includes checkball and checkball gasket)

RK23046

7

Sensor Plug Kit (1/2" SAE)

RK20128

8

Bowl Retaining Ring Kit (includes #13)

RK23014

9

Capscrew Kit (8 capscrews)

RK23016

10

Self Venting Drain Kit

RK30476

11

Bottom Bowl Kit (includes #'s 11, 14 & 16)

RK11-1938

12

Bowl Seal Kit

11007

13

Turbine Centrifuge Kit

RK11-1939

14

Thermostat Kit

RKSV700A

15

Vacuum Gauge Kit (optional)

RK18-1104

16

7777R part numbers on this page: 777R02, 777R10, 777R30, 6707, RK23006, 6706P, RK6733, 6732S, 6732T, 6732P, RK23046, RK20128, RK23014, RK23016, RK30476, RK11-1938,11007, RK11-1939, RKSV700A, RK18-1104, Priming Plug, Clear Dome, Dome Gasket, Element Spring, Machined Billet Body, Check Valve Kit, Sensor Plug, Bowl Retaining Ring, Capscrew, Self Venting Drain, Bottom Bowl, Bowl Seal, Turbine Centrifuge, Thermostat, Vacuum Gauge

© 2020 by FTG, Inc., Cerritos, CA (562) 865–9200

Parker Racor Engine & Mobile Division Technical Support is available at racortech@parker.com or 800-344-3286
